Chapter 37 | Page 17 of 18

Pedals, cables & brake hydraulics

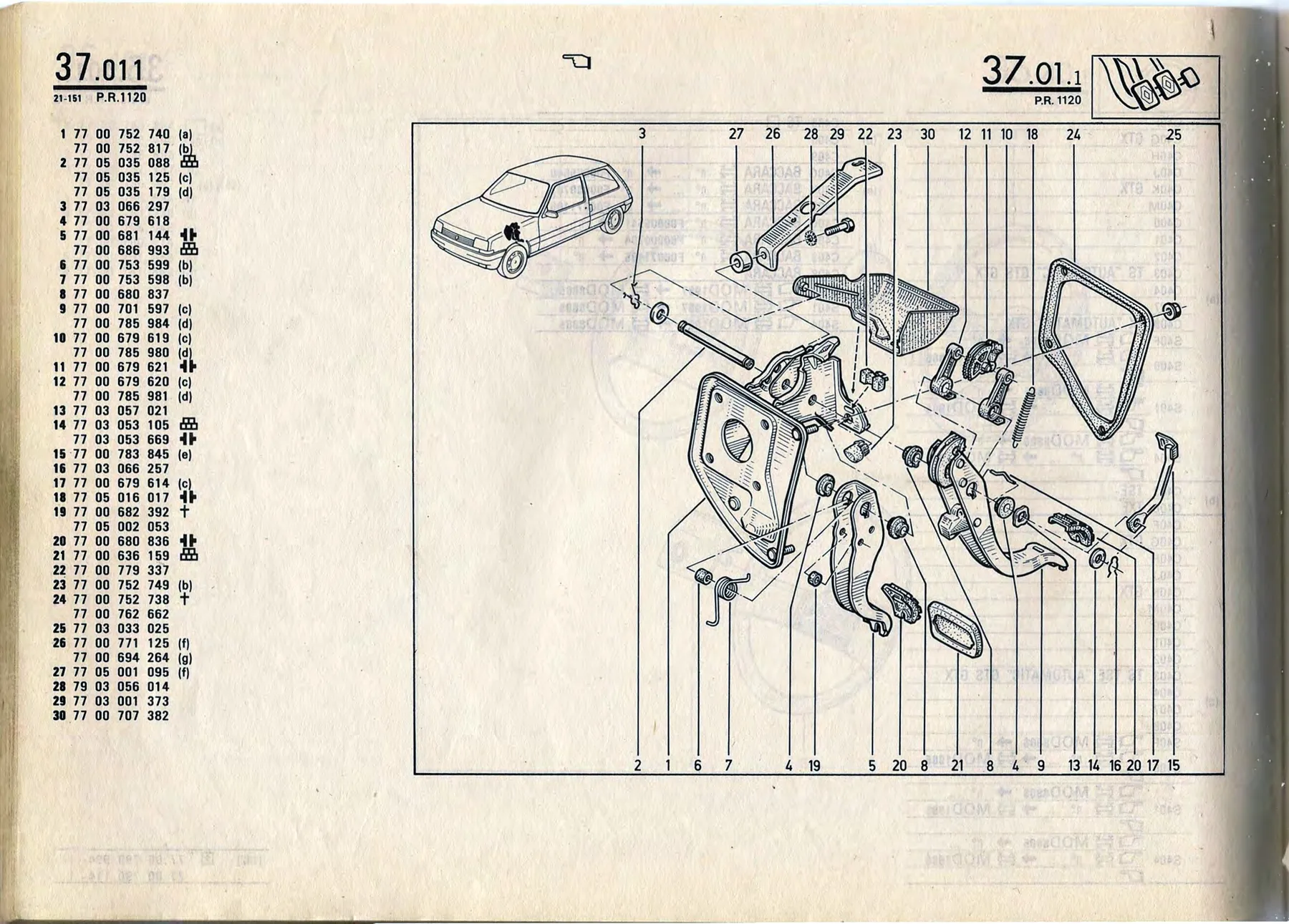

37.01Pedal box — brake & clutch pedals

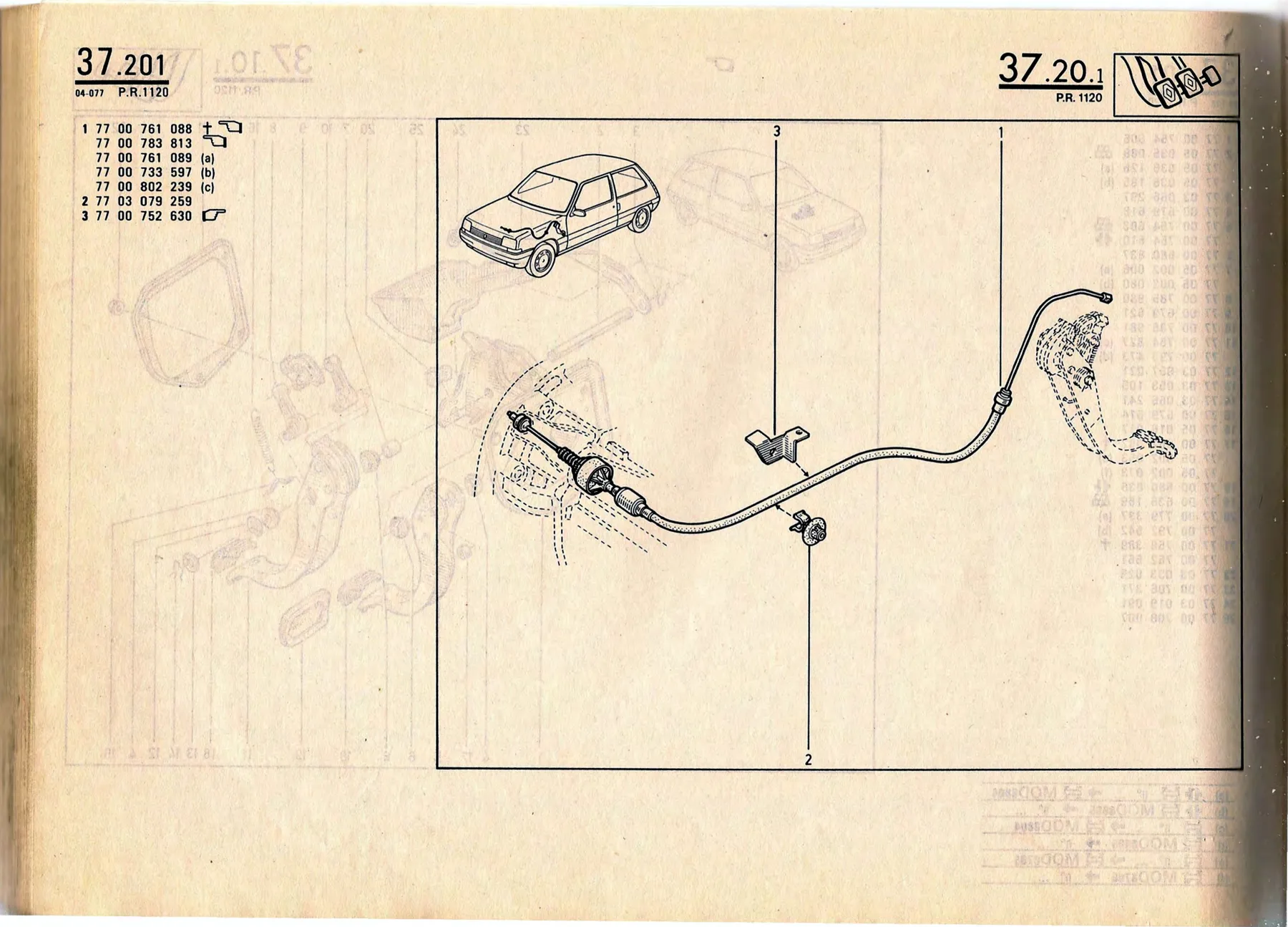

37.20Clutch cable

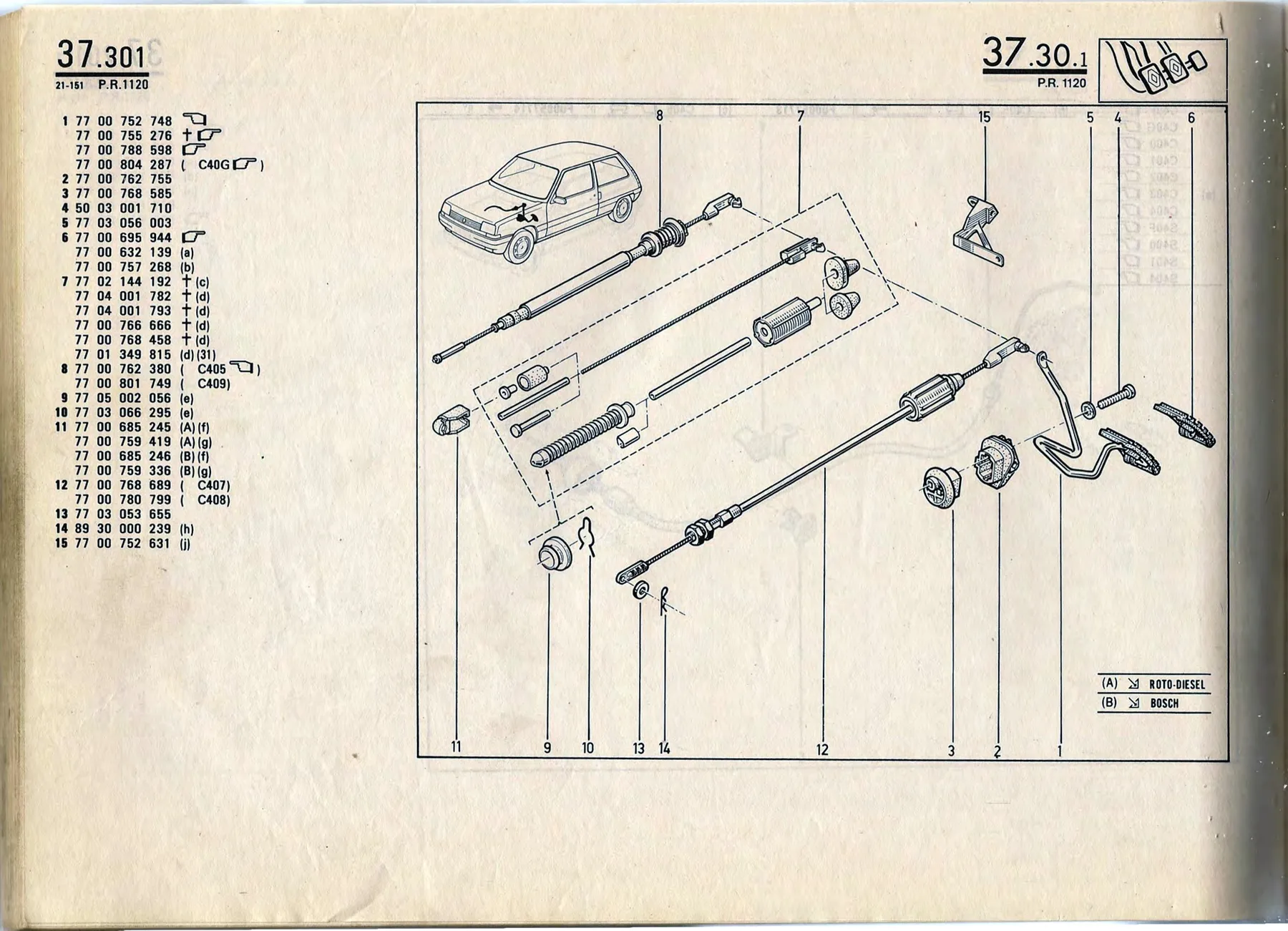

37.30Accelerator control rods & linkage

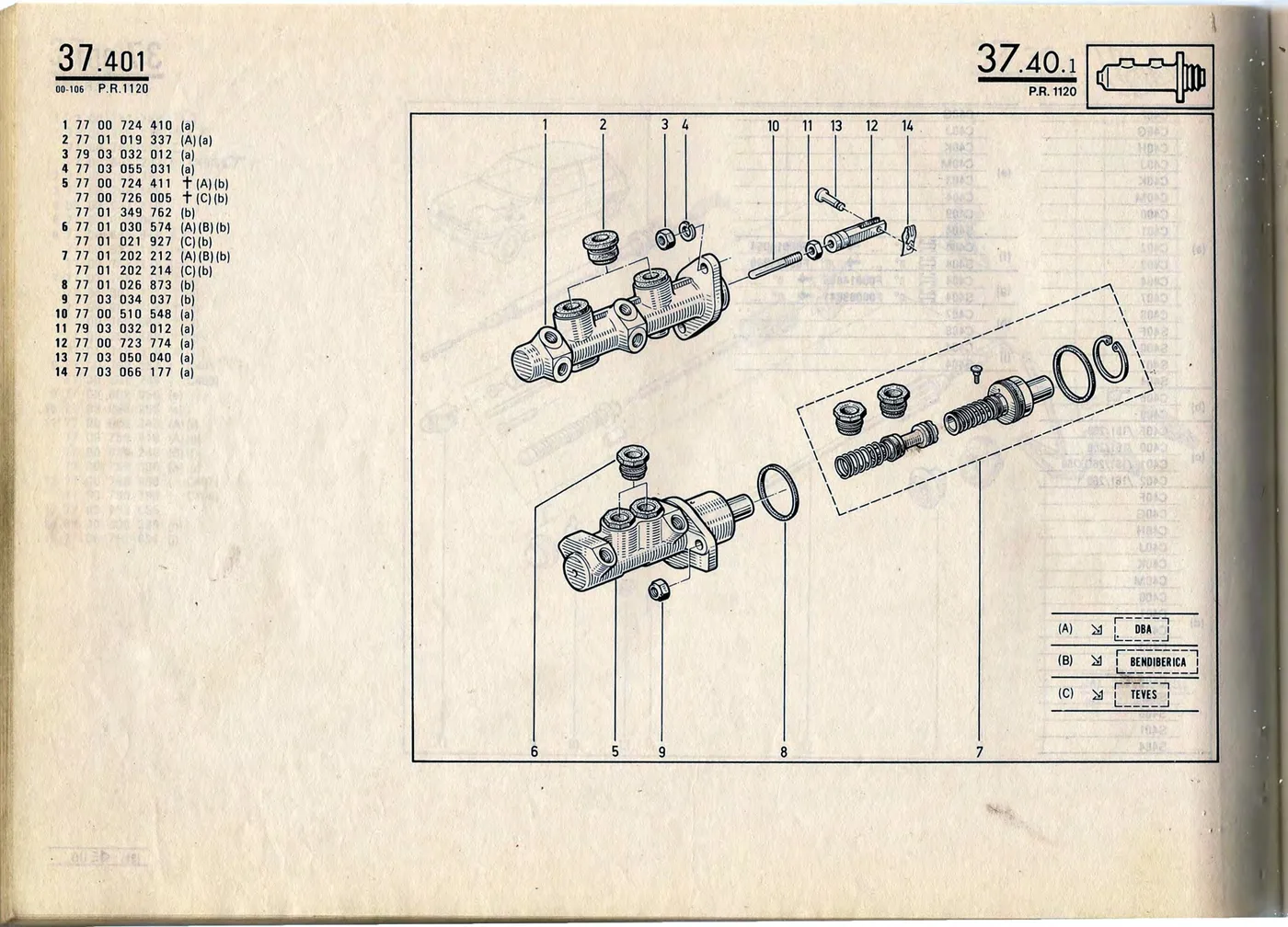

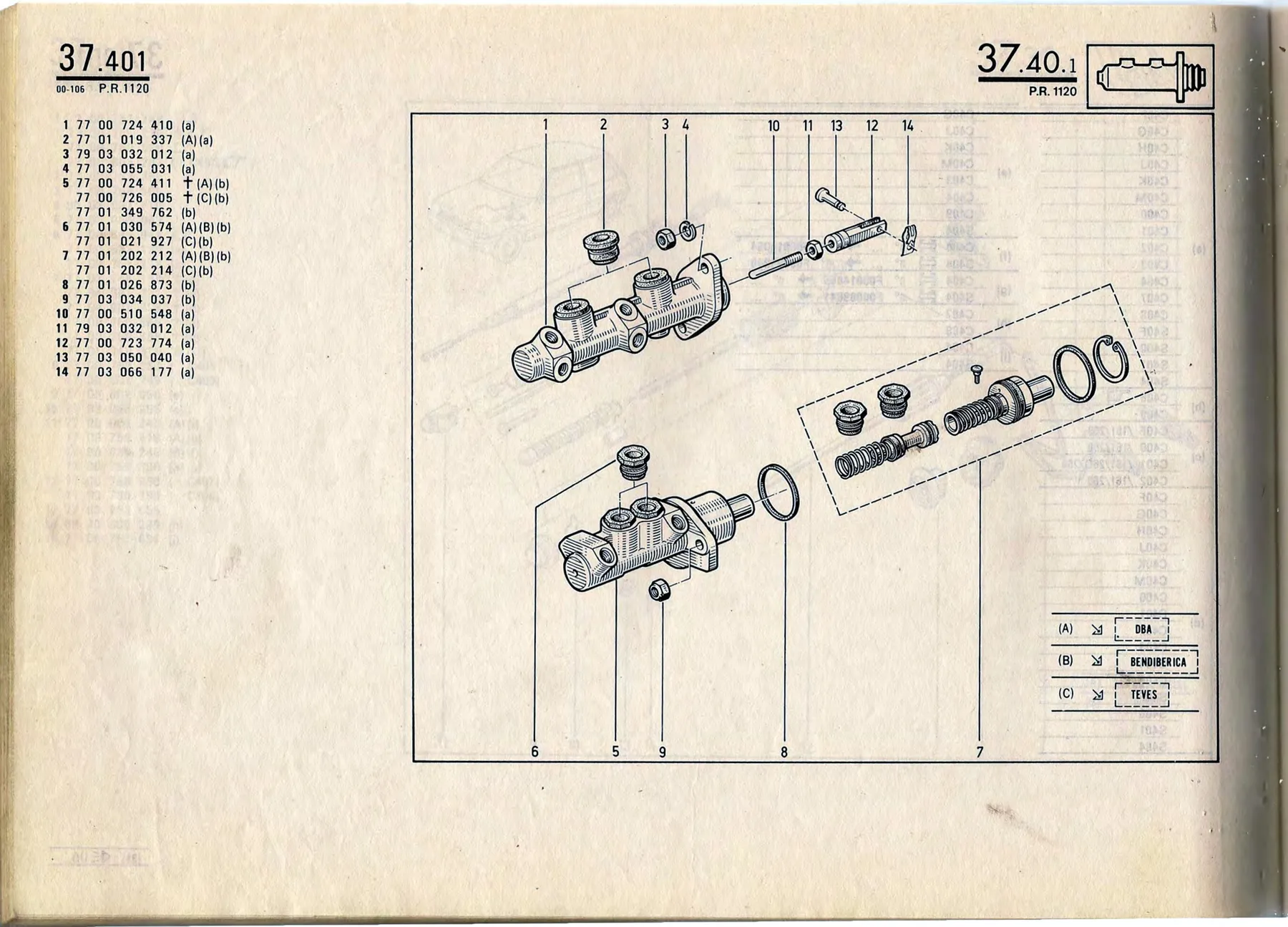

37.40Brake master cylinder & pressure valve

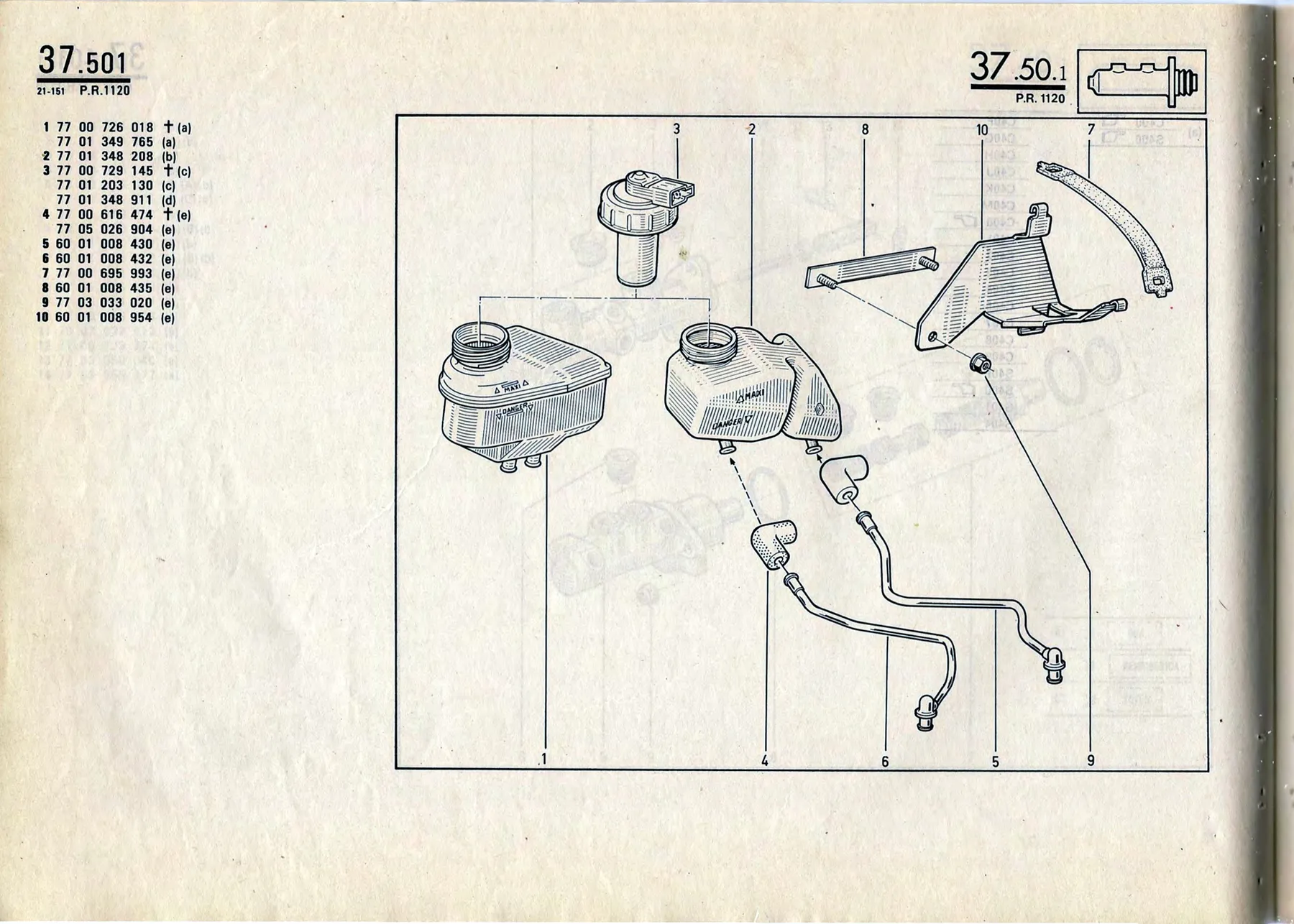

37.50Brake fluid reservoir & servo bracket

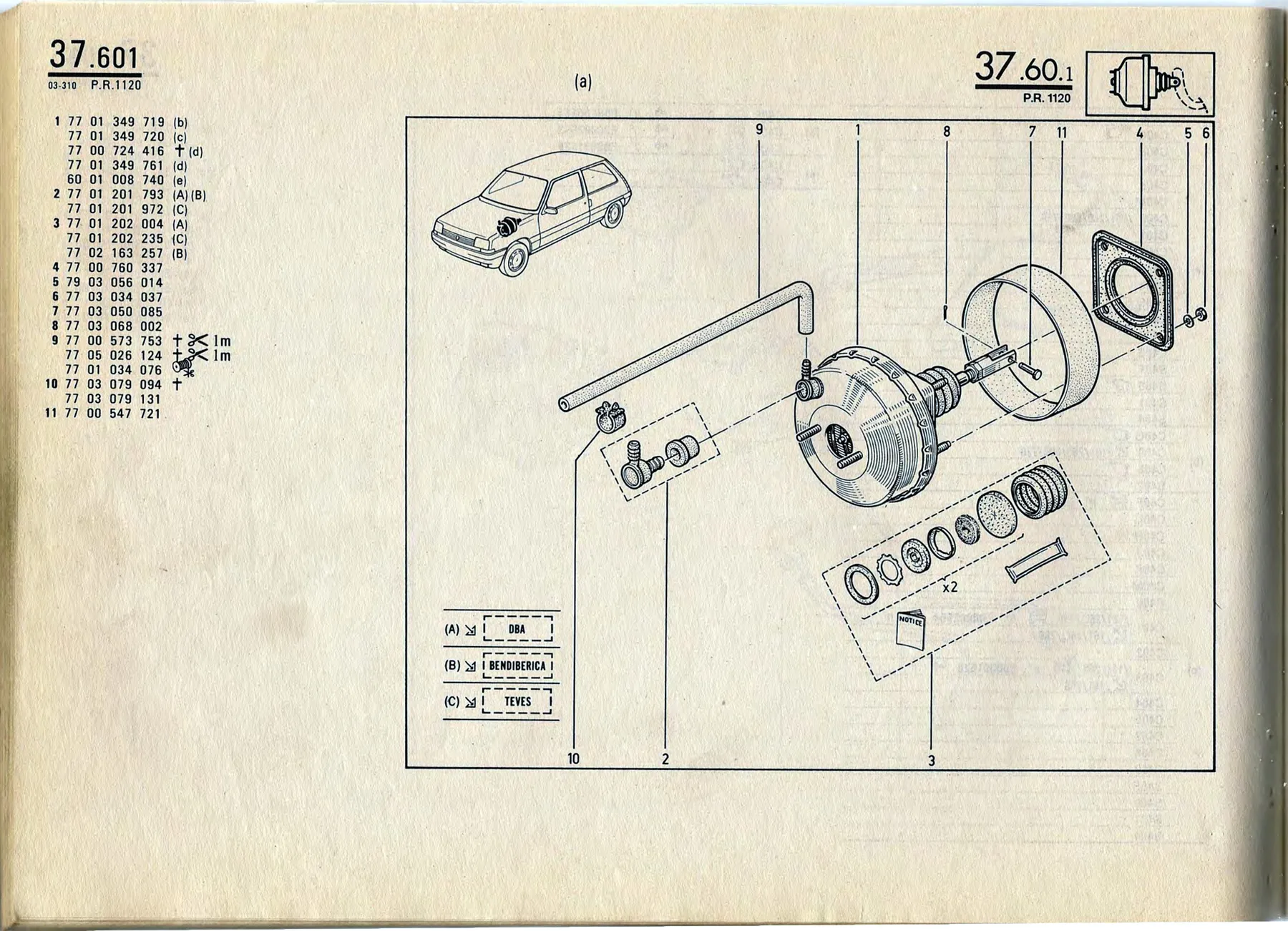

37.60Brake servo (vacuum booster) internals

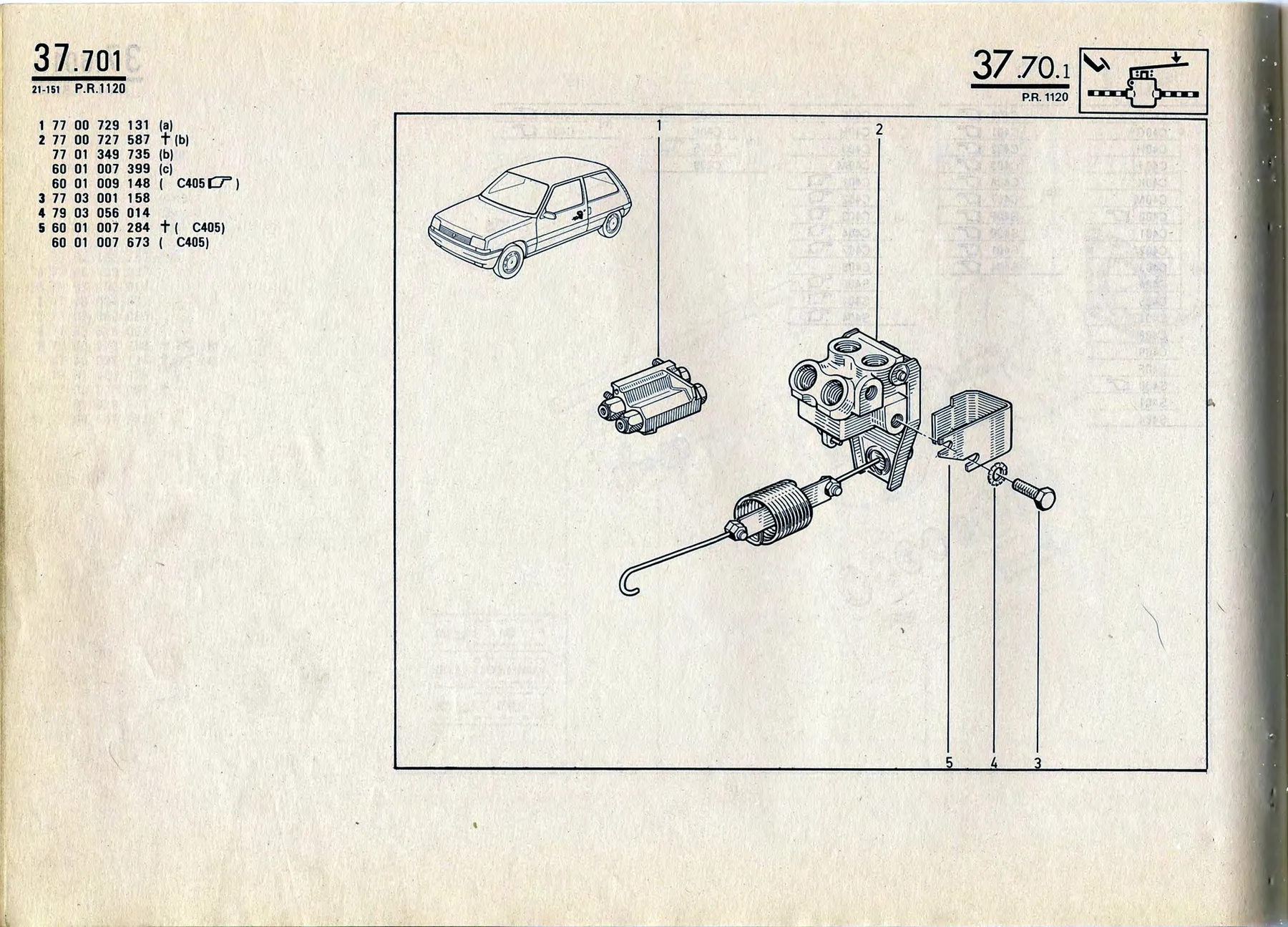

37.70Brake pressure limiter valve (C405)

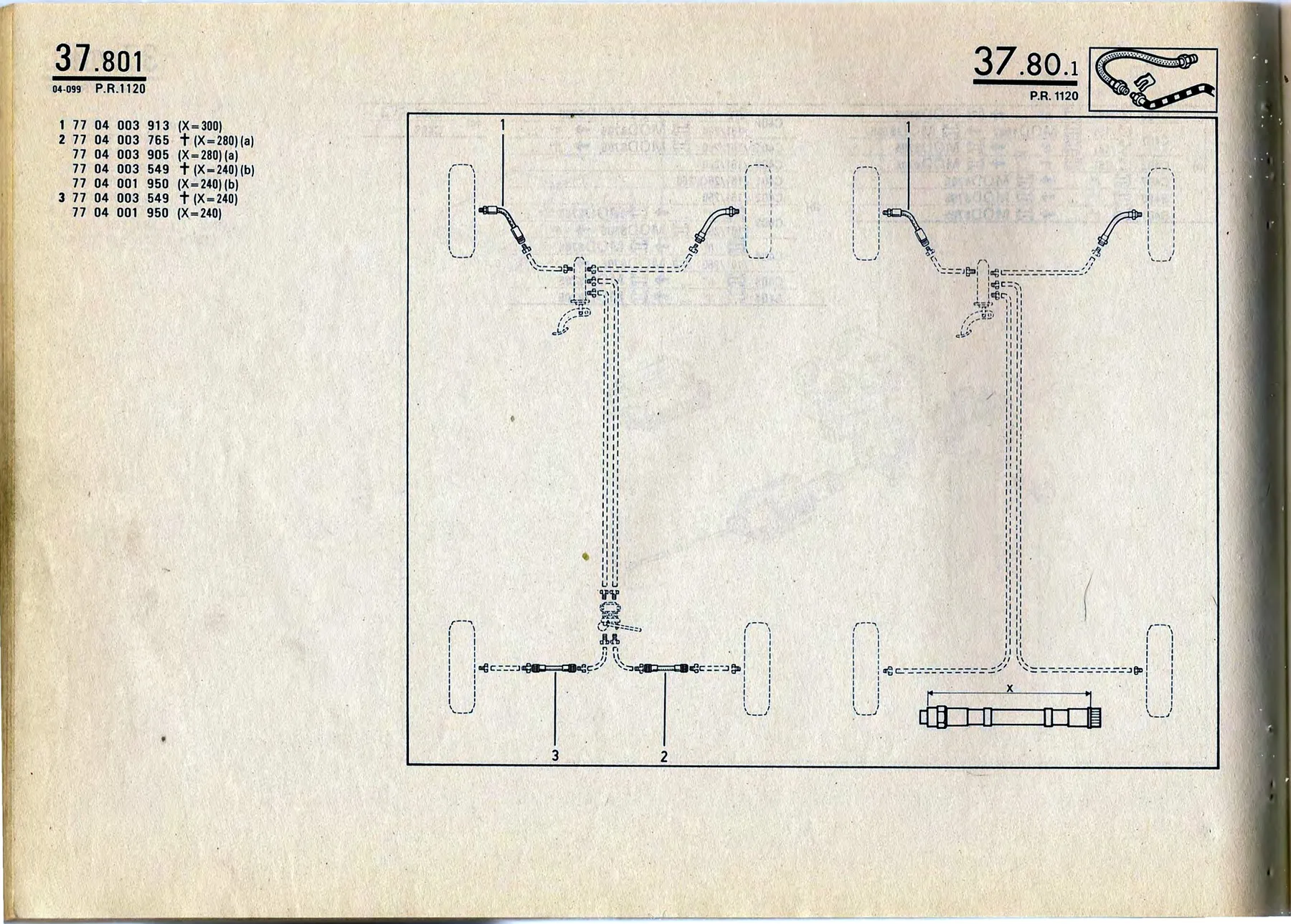

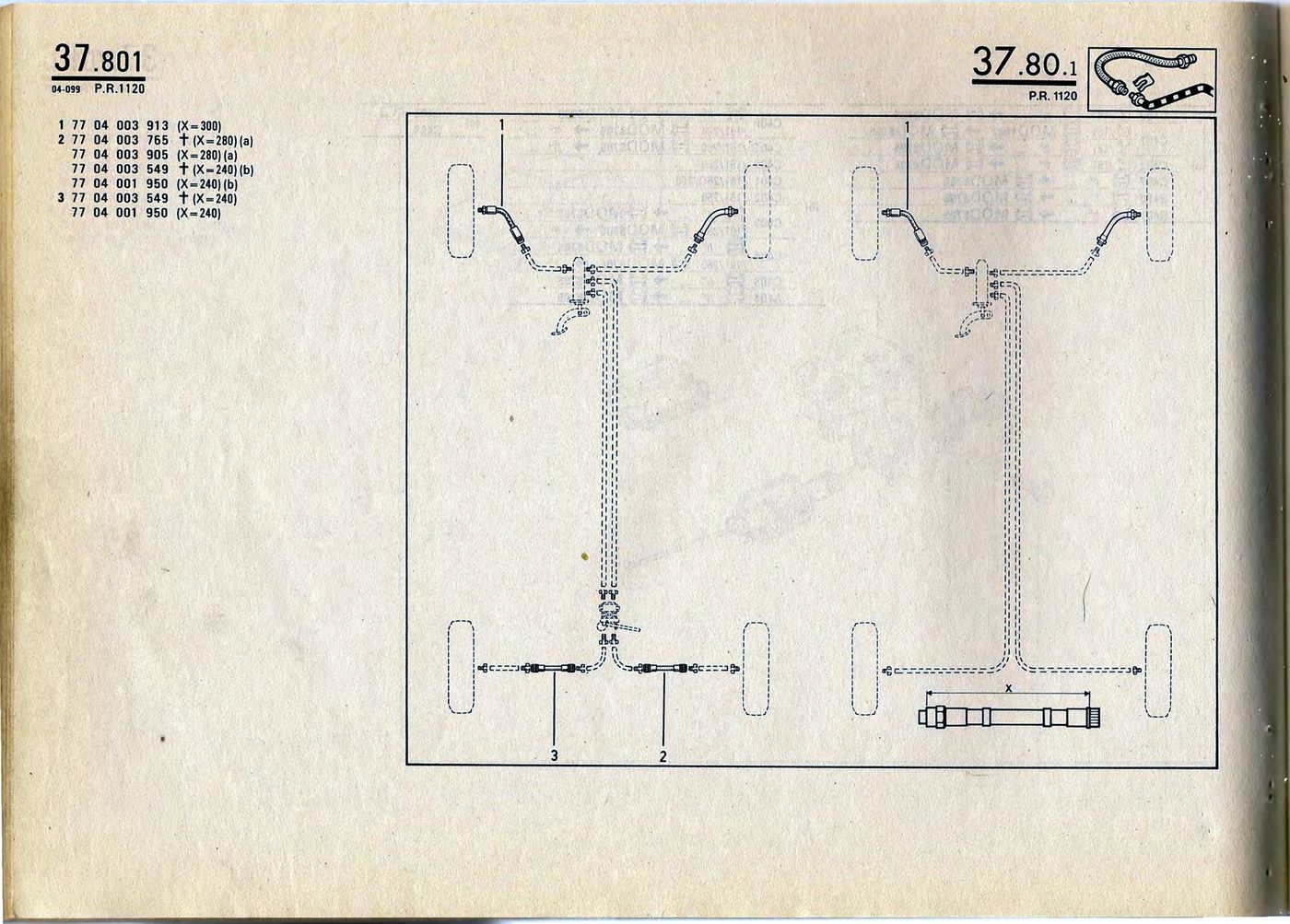

37.80Brake hose & pipe routing (full car)

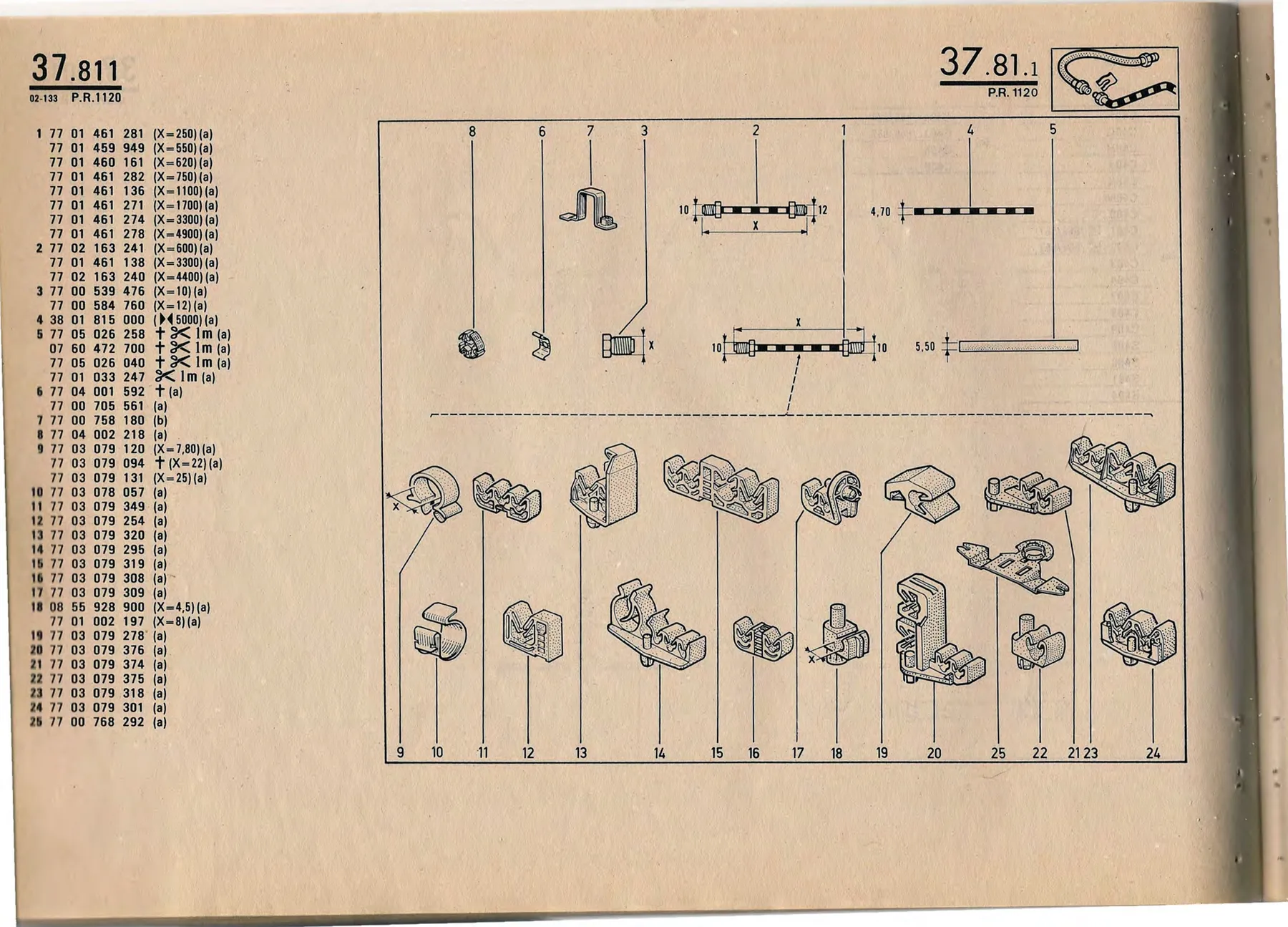

37.81Brake pipe unions, clips & brackets
Renault 5 GT turbo Parts Catalogue
  1. 10Enginepg 1–11
  2. 11Water pump, cylinder head & camshaftpg 12–15
  3. 12Manifolds, carburettor & coolant hosespg 16–19
  4. 13Fuel lines, air filter & turbochargerpg 20–25
  5. 16Alternator & starter motorpg 26
  6. 17Ignition system — distributor, plugs & leadspg 27–31
  7. 19Cooling system, fuel tank & exhaustpg 32–42
  8. 20Clutchpg 43
  9. 21Gearbox & differentialpg 44–50
  10. 29Driveshafts (CV joints)pg 51–52
  11. 31Front suspension & hubspg 53–55
  12. 32Front struts, anti-roll bar & brakespg 56–58
  13. 33Rear axle, brakes & anti-roll barpg 59–61
  14. 34Rear shock absorbers & brakespg 62–63
  15. 35Wheels & rimspg 64
  16. 36Steering rack, column & wheelpg 65–68
  17. 37Pedals, cables & brake hydraulicspg 69–77
  18. 38Handbrake, gear lever & release cablespg 78–81
Parts catalogue page 37.01Parts catalogue page 37.20Parts catalogue page 37.30Parts catalogue page 37.40Parts catalogue page 37.50Parts catalogue page 37.60Parts catalogue page 37.70Parts catalogue page 37.80Parts catalogue page 37.81
