Chapter 20 | Page 8 of 18

Clutch

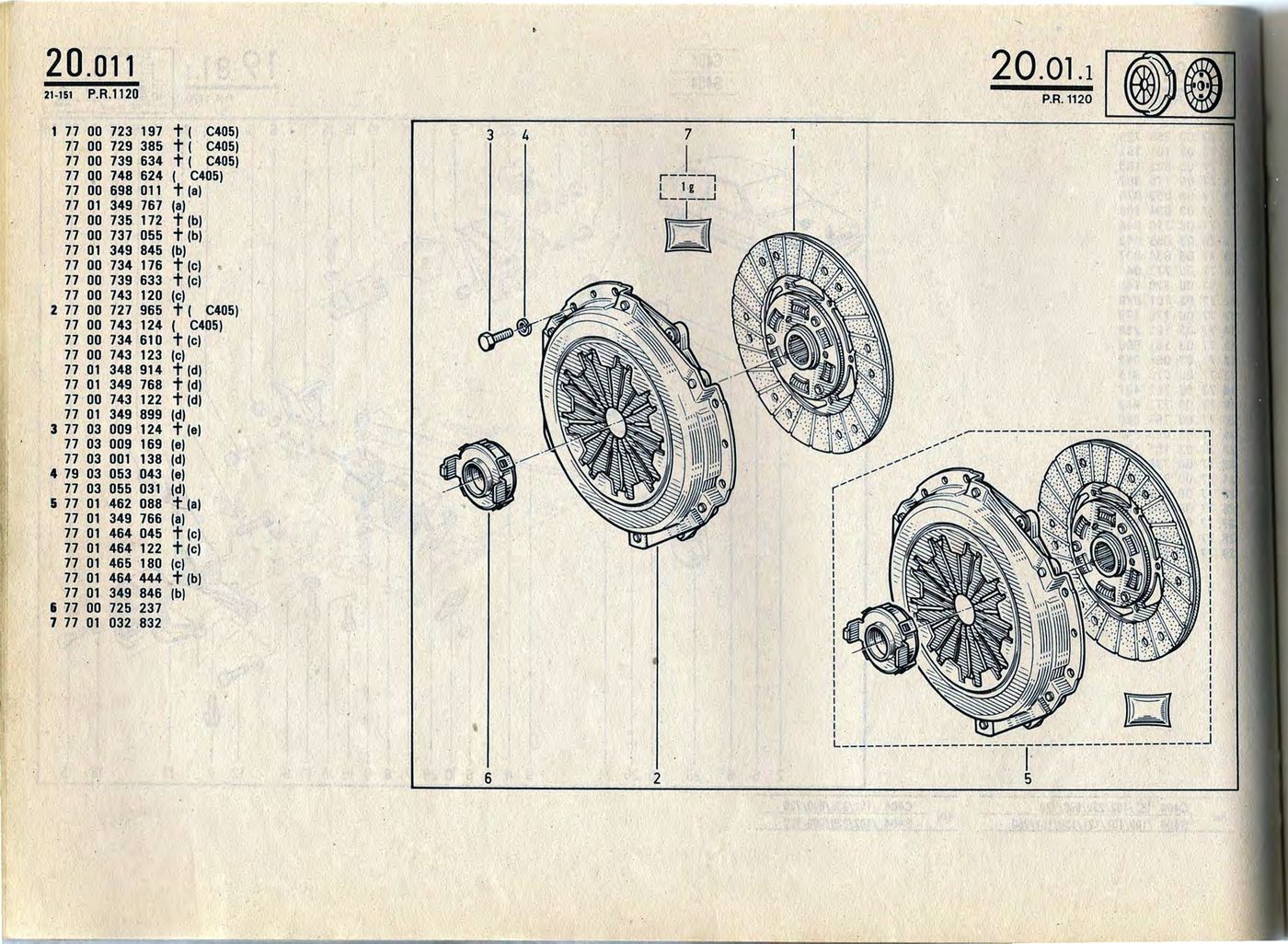

20.01Clutch disc, cover & release bearing
Renault 5 GT turbo Parts Catalogue
  1. 10Enginepg 1–11
  2. 11Water pump, cylinder head & camshaftpg 12–15
  3. 12Manifolds, carburettor & coolant hosespg 16–19
  4. 13Fuel lines, air filter & turbochargerpg 20–25
  5. 16Alternator & starter motorpg 26
  6. 17Ignition system — distributor, plugs & leadspg 27–31
  7. 19Cooling system, fuel tank & exhaustpg 32–42
  8. 20Clutchpg 43
  9. 21Gearbox & differentialpg 44–50
  10. 29Driveshafts (CV joints)pg 51–52
  11. 31Front suspension & hubspg 53–55
  12. 32Front struts, anti-roll bar & brakespg 56–58
  13. 33Rear axle, brakes & anti-roll barpg 59–61
  14. 34Rear shock absorbers & brakespg 62–63
  15. 35Wheels & rimspg 64
  16. 36Steering rack, column & wheelpg 65–68
  17. 37Pedals, cables & brake hydraulicspg 69–77
  18. 38Handbrake, gear lever & release cablespg 78–81

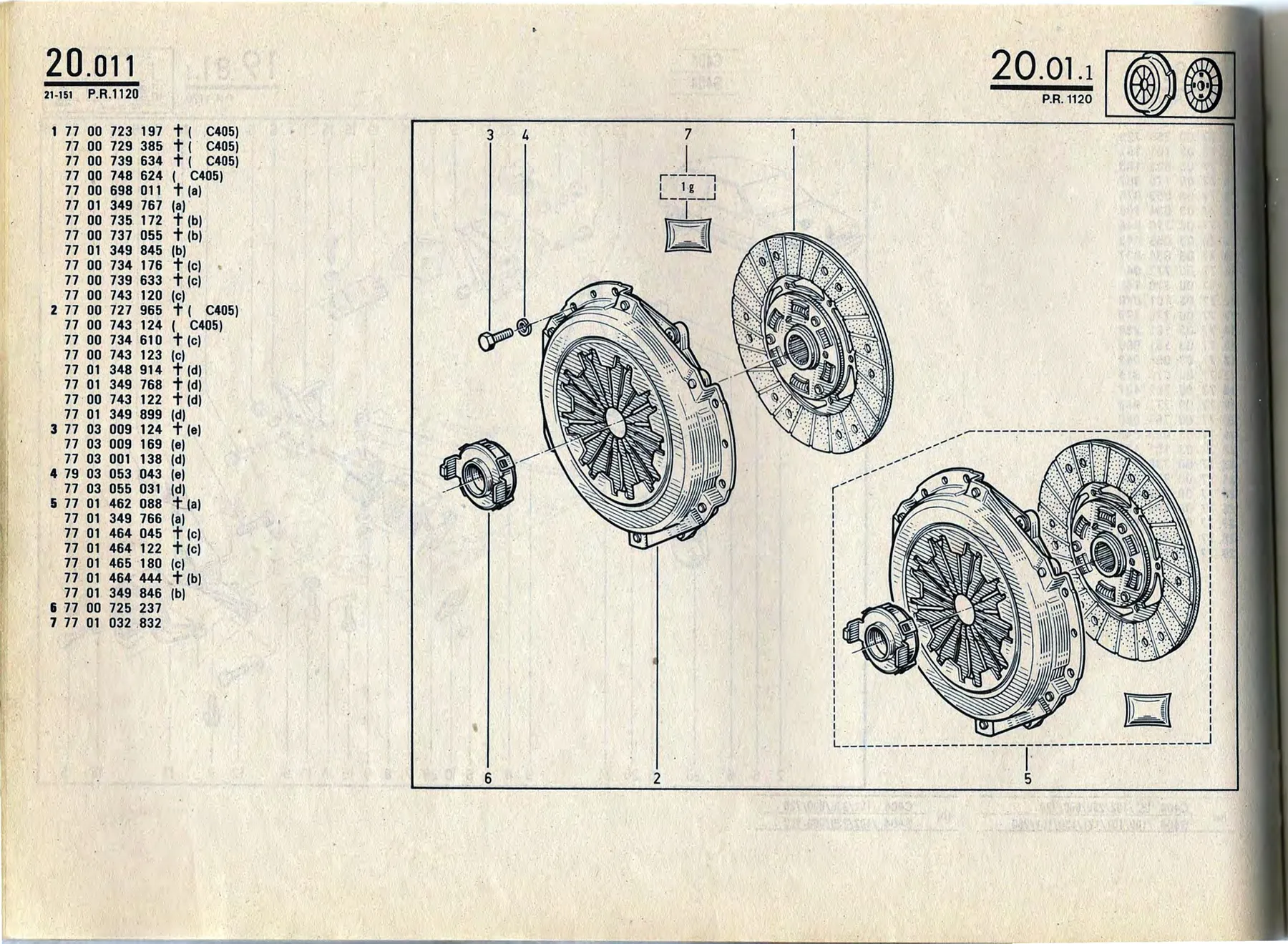

Parts catalogue page 20.01
