Chapter 13 | Page 4 of 18

Fuel lines, air filter & turbocharger

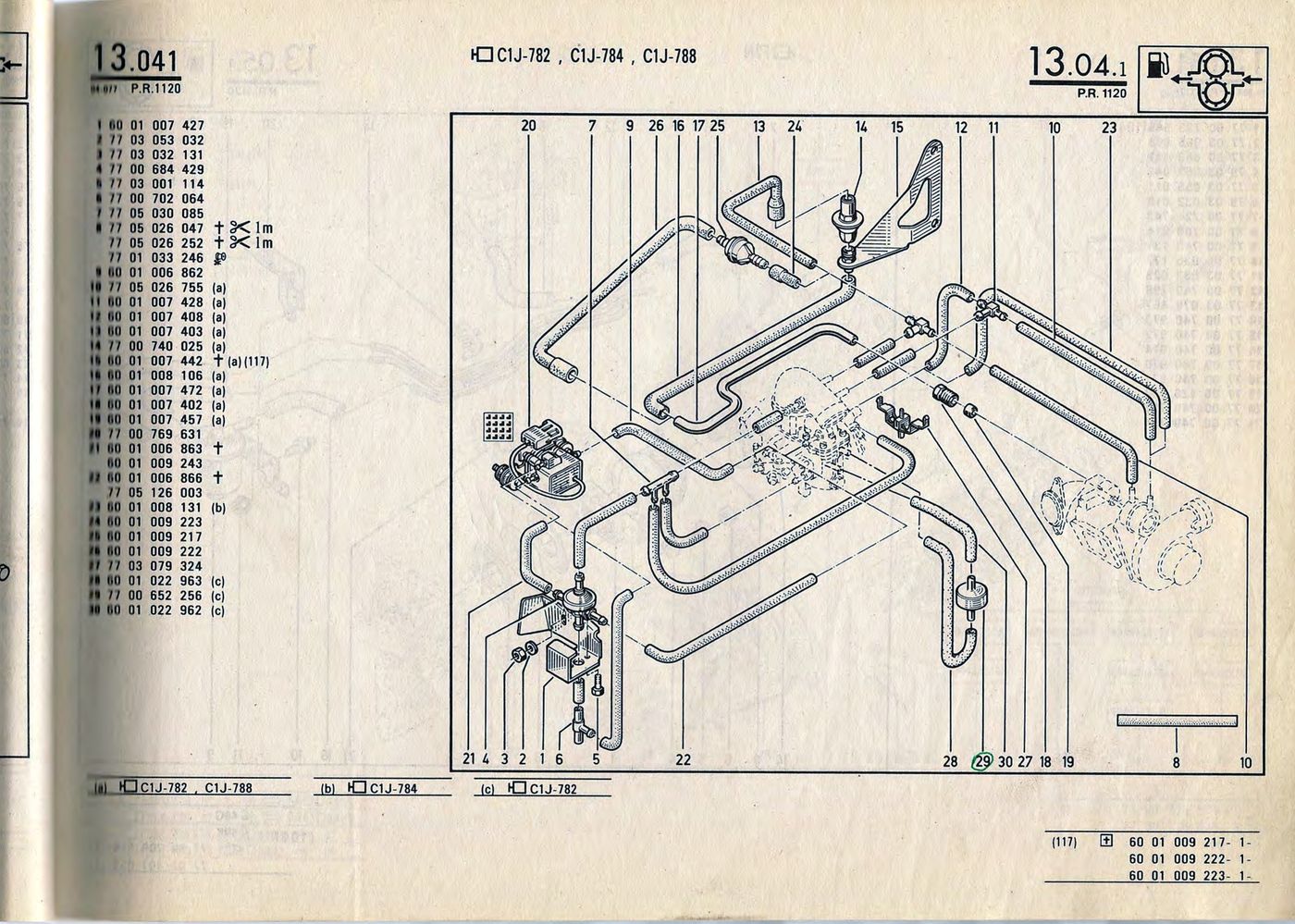

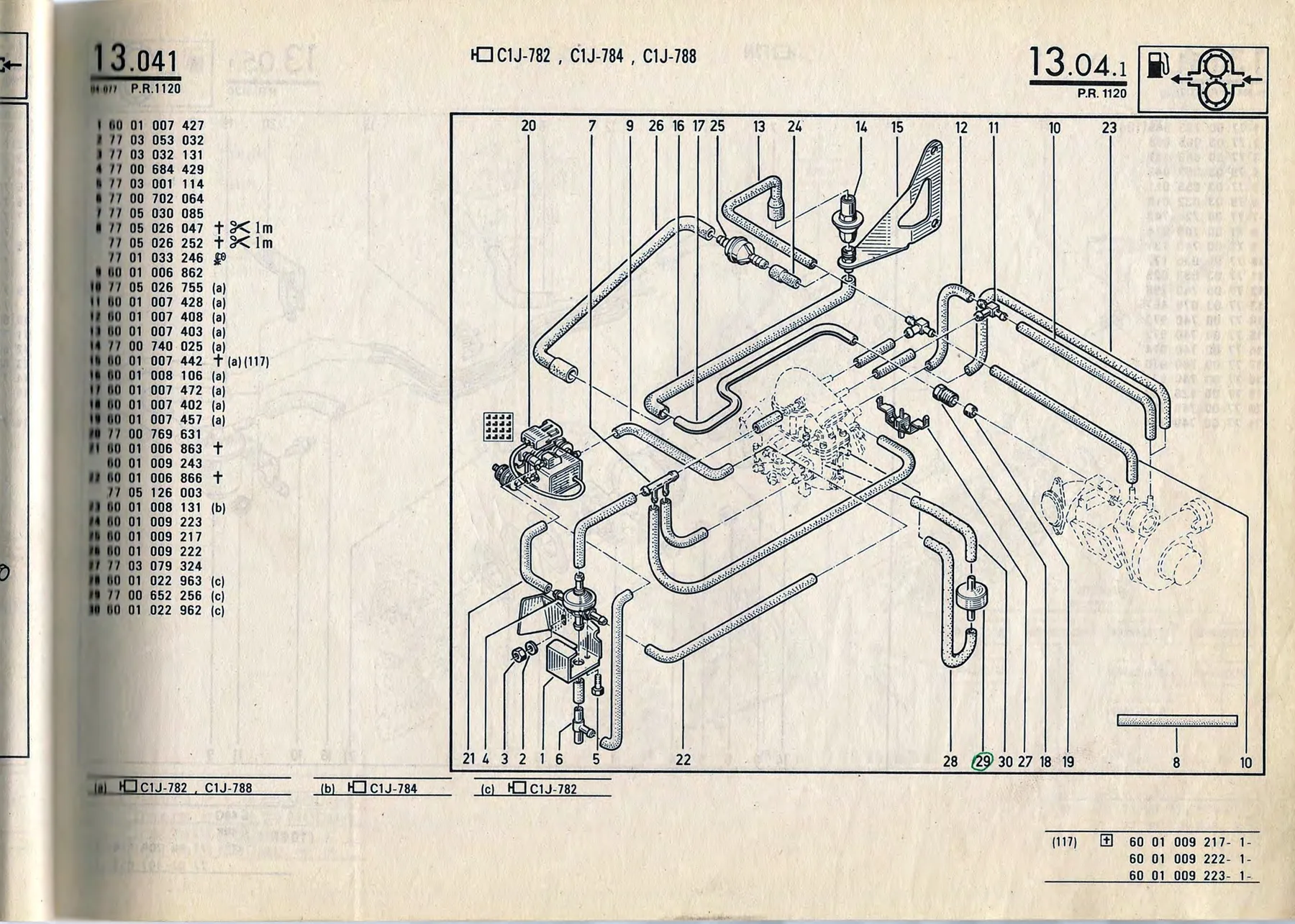

13.04Fuel lines & filter

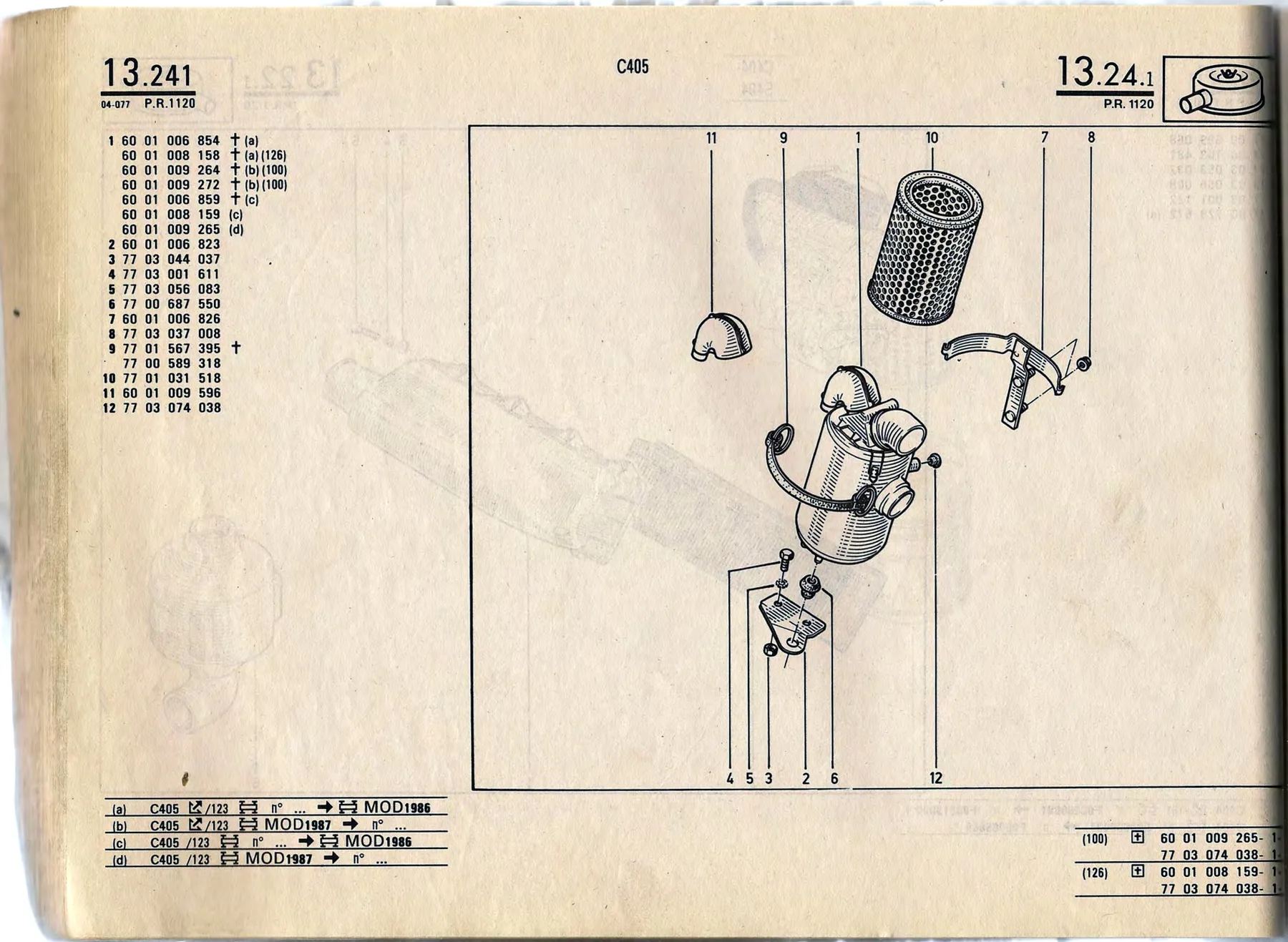

13.24Air filter housing & element (C405)

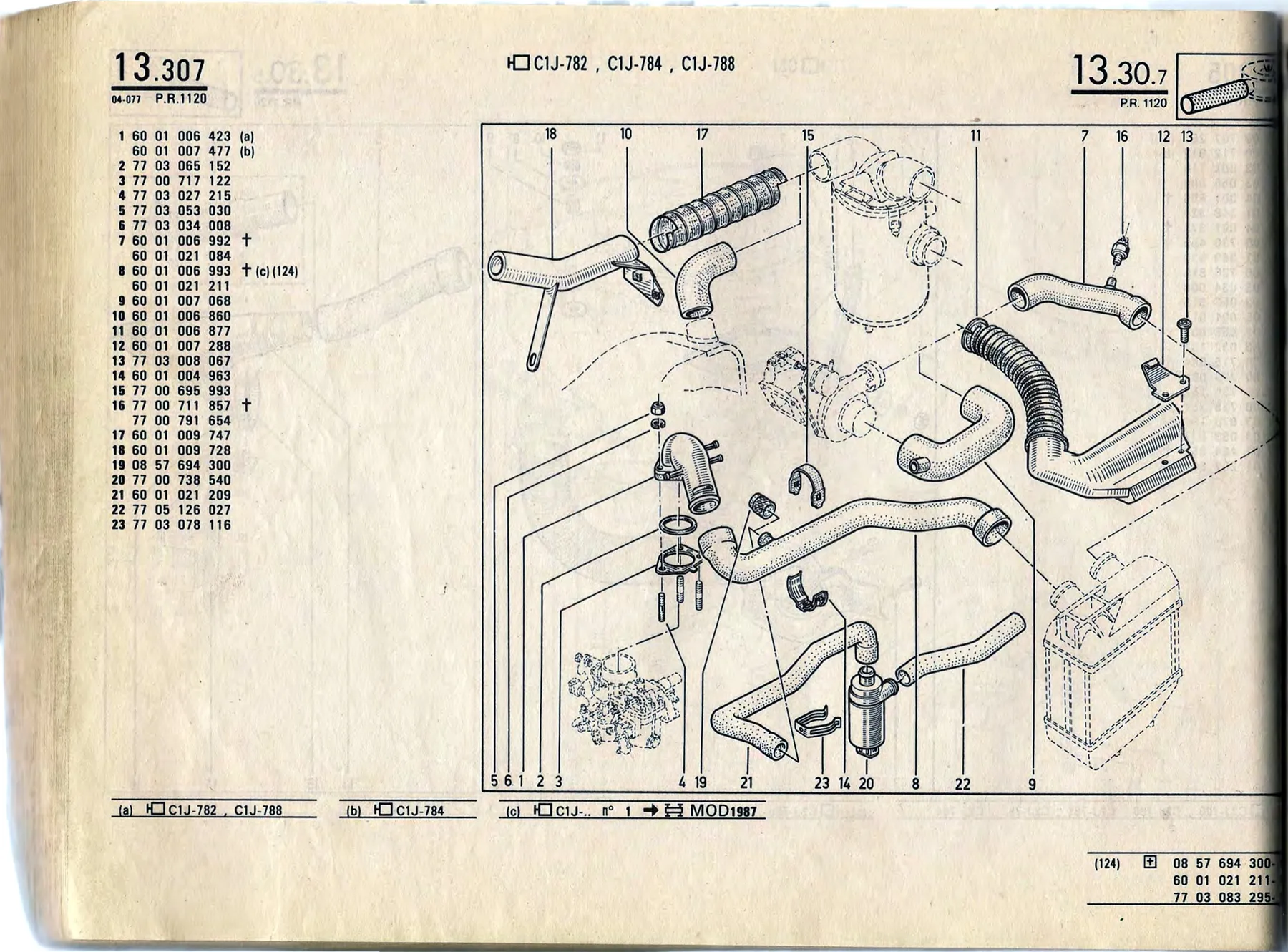

13.30Air ducts & hoses between air filter, turbo and carburettor

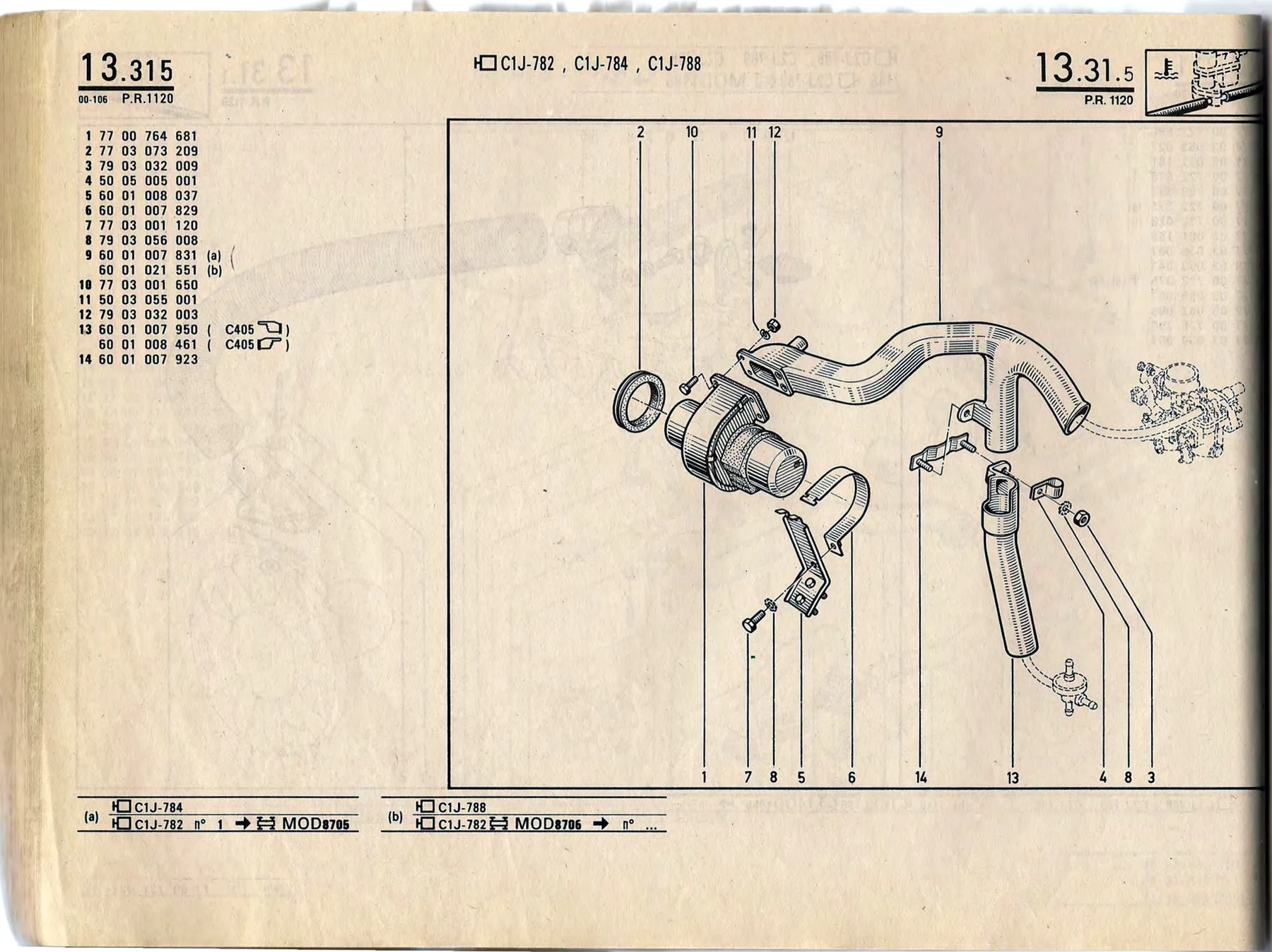

13.31Turbocharger hose routing

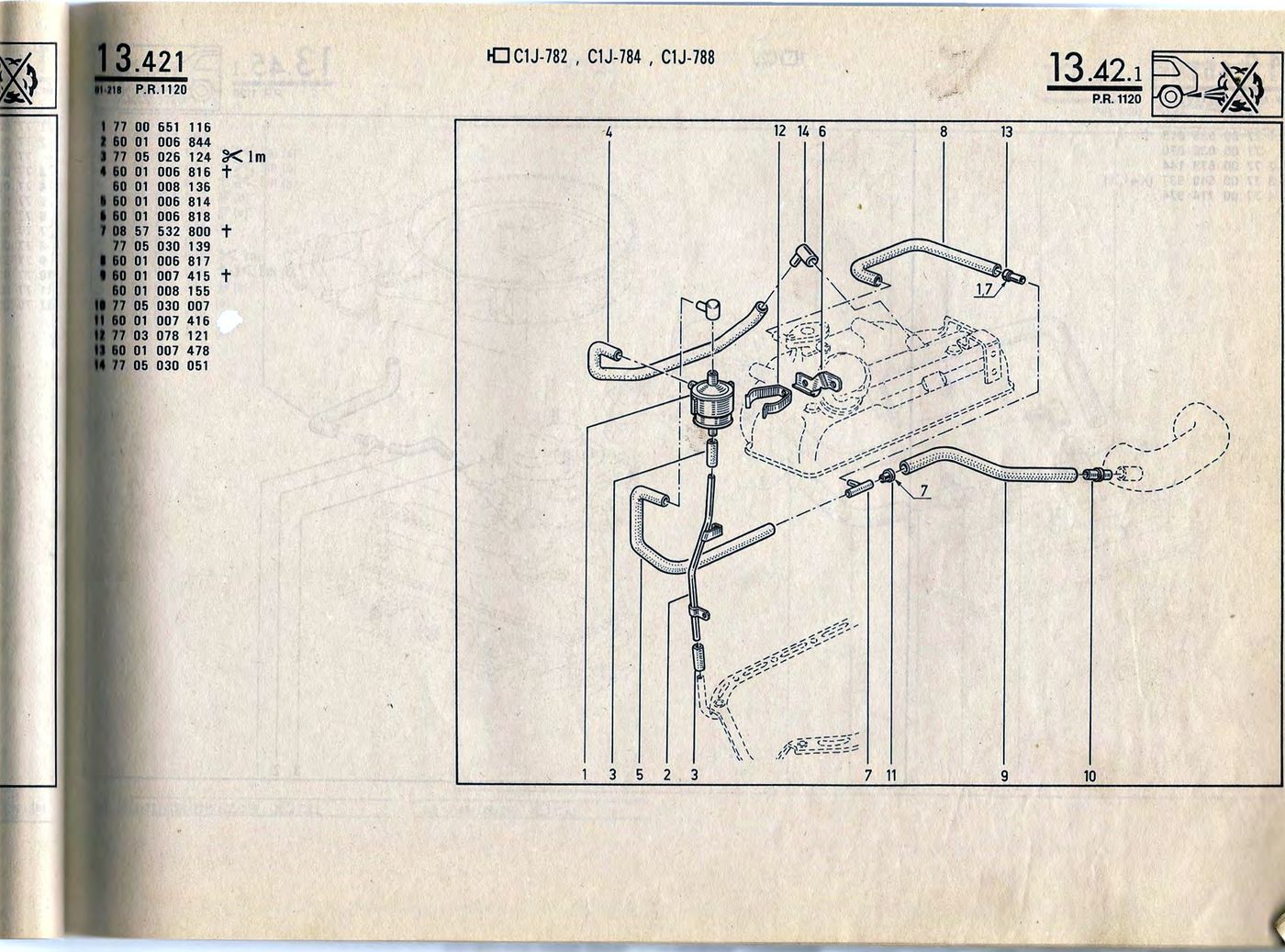

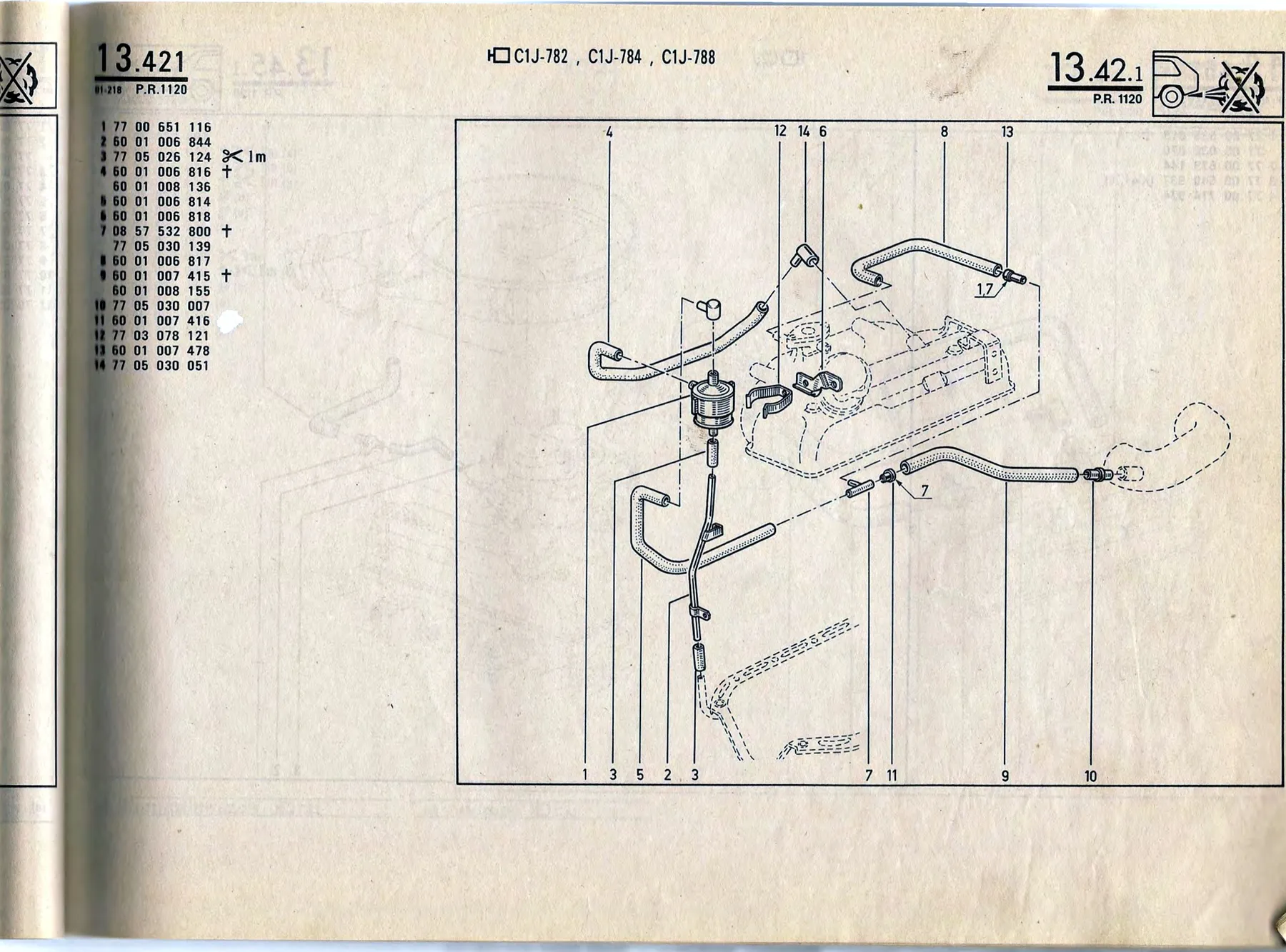

13.42Emission-control breather hoses & filter

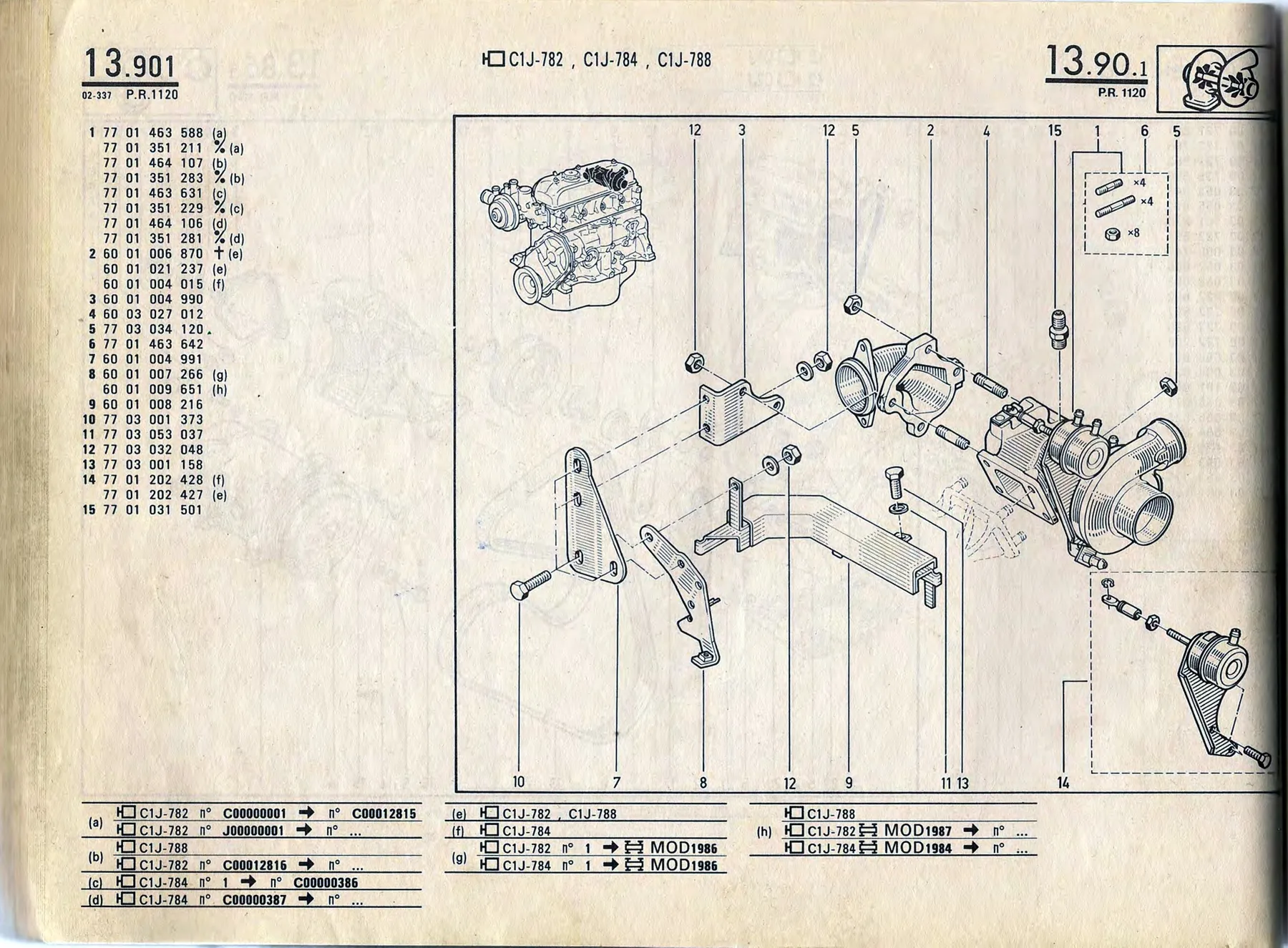

13.90Turbocharger, mounting brackets & wastegate actuator
Renault 5 GT turbo Parts Catalogue
  1. 10Enginepg 1–11
  2. 11Water pump, cylinder head & camshaftpg 12–15
  3. 12Manifolds, carburettor & coolant hosespg 16–19
  4. 13Fuel lines, air filter & turbochargerpg 20–25
